| Product Introduction |
|---|

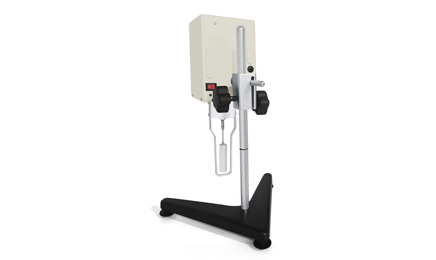

| Digital Viscometer DHJ-8S features high measurement sensitivity, reliable test results, easy operation, and a stylish appearance. It is an instrument used to measure the absolute viscosity of Newtonian fluids and the apparent viscosity of non-Newtonian fluids. It can be widely used in the measurement of viscosity of various objects such as fats, paints, plastics, medicines, jewelry, coatings, and detergents. |
| Product Features |
|---|
| Digital Viscometer is a digital viscometer, driven by a motor and variable speed belt to ensure constant rotation of the rotor. As the rotor rotates in the liquid, the viscosity of the liquid produces a corresponding viscous torque on the rotor, which increases as the viscosity of the liquid increases and decreases as the viscosity of the liquid decreases. The viscous torque acting on the rotor is detected by a sensor, and the viscosity of the liquid being measured is calculated after being processed by a computer. |
| Digital Viscometer uses microcomputer technology and can easily set the measuring range (rotor number and speed). It also performs digital processing of the data detected by the sensor and clearly displays on the screen the rotor number, speed, viscosity value of the measured liquid, and its full range percentage value during measurement. |

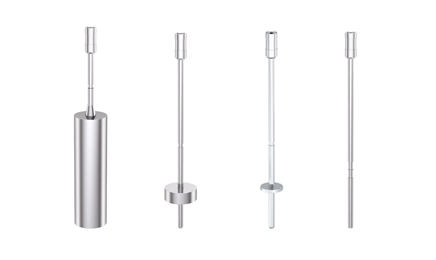

| DHJ-8S is equipped with 4 rotors (No. 1, 2, 3, 4) and 8 speeds (0.3, 0.6, 1.5, 3, 6, 12, 30, 60 rpm), providing 32 combinations that can measure the viscosity of various liquids within the measuring range. |
| Technical Parameters | |
|---|---|
| Model: | DHJ-8S |
| Measurement range: | 1 ~2×106mPa.s |
| Rotor specifications: | Rotor 1-4, optional rotor 0 for low viscosity measurement up to 0.1mPa.s |
| Rotor speed: | 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 rpm |
| Automatic gear: | Automatically selects suitable rotor and speed |
| Operating interface language: | Chinese/English |
| Stable reading cursor: | Vertical block cursor shows basic stability when it is full |
| Measurement accuracy: | ±2% (Newtonian fluids) |
| Power supply: | AC 220V±10% 50Hz±10% |
| Working environment: | Temperature 5℃~35℃, relative humidity not greater than 80% |
| Dimensions: | 370*325*280mm |
| Net weight: | 6.8 kg |
| DHJ-8S | Unit |
|---|---|
| Host Machine | Unit |
| Rotor 1-4 | set |
| Rotor 0 | set |
| Base | unit |
| Protective cover | unit |
| Lifting column | set |
| A pair of pliers (one large and one small) | set |
| Hexagonal socket head | piece |
| Power adapter | set |
| User manual | copy |
| Warranty card | copy |
| Certificate of qualification | copy |
|
