| Product Features |
|---|
| 1. LED display with a clear and concise interface. |
| 2. The instrument has fast heating speed, uniform heating, accurate temperature control, high stability, low energy consumption, and no noise. |
| 3. Built-in temperature deviation calibration function, automatic fault detection, and buzzer alarm function. |
| 4. Built-in over-temperature protection device for safer and more reliable use, and extended machine service life. |
| 5. The product is designed compact and tightly, occupying a small space range, bringing more freedom and convenience. |
| 6. Multiple module options for easy replacement and cleaning/disinfection of various test tubes. |
| Technical Parameters | |
|---|---|
| Model: | DH200-1 |
| Temperature Control Range: | Room temperature +5℃ ~ 150℃ |
| Heating Time: | ≤ 30 minutes (from 20℃ to 100℃) |
| Temperature Stability (@100~150℃): | ≤±1℃ |
| Temperature Stability (@40~100℃): | ≤±0.5℃ |
| Maximum Temperature Difference of Module @40℃: | 0.3℃ |
| Temperature Uniformity of Module: | ≤±0.5℃ |
| Temperature Display Accuracy: | 0.1℃ |
| Longest Timing: | 99h59min |
| Maximum Temperature: | 150℃ |
| Maximum Power: | 250W |
| Product Size: | 260×220×85mm |
| Product Weight: | ≤2.6kg |

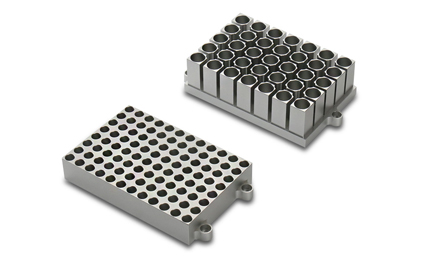

| Module Model Selection | |||
|---|---|---|---|
| Model | Test Tube Diameter | Number of Test Tubes | Module Size |
| DT01 | 6mm | 42 | 95.5×76.5×50 |
| DT02 | 7mm | 42 | 95.5×76.5×50 |
| DT03 | 10mm | 20 | 95.5×76.5×50 |
| DT04 | 12mm | 24 | 95.5×76.5×50 |
| DT05 | 13mm | 20 | 95.5×76.5×50 |
| DT06 | 15mm | 12 | 95.5×76.5×50 |
| DT07 | 16mm | 12 | 95.5×76.5×50 |
| DT08 | 19mm | 12 | 95.5×76.5×50 |
| DT09 | 20mm | 6 | 95.5×76.5×50 |
| DT10 | 26mm | 6 | 95.5×76.5×50 |
| DT11 | 28mm | 4 | 95.5×76.5×50 |
| DT12 | 40mm | 4 | 95.5×76.5×50 |
| DT13 | 0.5ml | 48 | 95.5×76.5×50 |
| DT14 | 1.5ml | 24 | 95.5×76.5×50 |
| DT15 | 2.0ml | 24 | 95.5×76.5×50 |
| DT16 | 0.2ml | 48 | 78×114×26 |
| DT17 | Flat plate | 96-well ELISA plate | 81×123×19 |
| DT18 | Customizable | Customizable | Customizable |
| Related products | |
|---|---|
| Name: | Model: |
| thermostatic dry bath | DH200-2 |
| Heating Dry Bath | DH200-1 |
| dry thermostat | DH200-4 |
| DH200-1 | Unit |
|---|---|
| Host Machine | Unit |
| Metal module | piece |
| Special Screwdriver (used for disassembling the mo | Piece |
| Power cord | piece |
| User manual | copy |
| Warranty card | copy |
| Certificate of qualification | copy |
|
